Model and Parameter of 200-300 tph Impact Crusher

Impact crushers are used in the stone crushing production line for secondary crushing. They can be integrated with jaw crusher, and making machine, and other equipment for stone crushing and sand making. The following is a detailed introduction to the models and specifications of 200 t/h impact crushers for you.

There are many models and specifications of impact crushers. They are used in the stone crushing production line for secondary crushing. The impact crusher can be integrated with jaw crusher, and making machine, and other equipment for stone crushing and sand making. The following is a detailed introduction to the models and specifications of 200 t/h impact crushers for you.

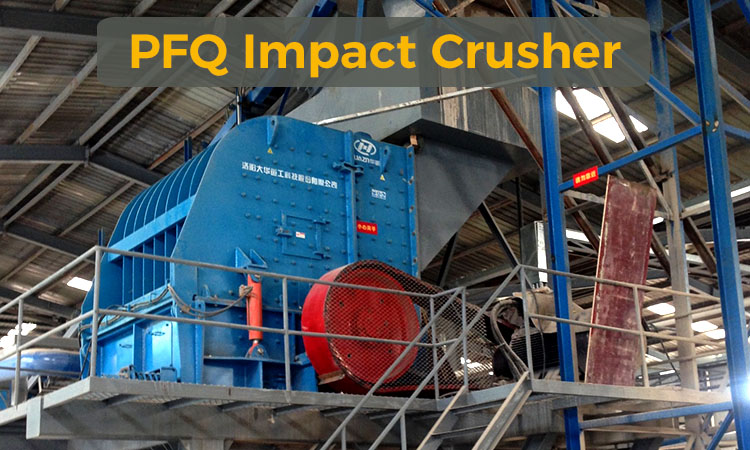

stone impact crusher

The model and parameter of impact crusher is determined based on different feed opening and rotor diameters. The model of impact crusher with an hourly output 200 – 300 tons include PFQ 1313, PFQ 1315, and PFQ1320.

Model Max. Feed Size (mm) Discharge Size(mm) Capacity (t/h) Power (kw)
<150MPa <250MPa
PFQ1313 400 250 40 180-260 250
PFQ1315 400 300  40  200-300 250
PFQ1320 400 300 40 300-400 2×160

There are many models and specifications of impact crushers. Besides the hourly output of 200 – 300 tones, there are other types of hourly output of 100 tons, 500tons, and more. The impact crusher is mainly used for medium crushing of stones with compressive strength below 320 Mpa. The produced particle shape is good, and has been highly praised by customers since its launch on the market.

I. Impact crusher + Jaw crusher + Vibrating screen

Material: construction waste

jaw crusher
impact crusher

II. 2 Impact crusher + 2 Jaw crusher + Cone crusher

Material: stone aggregates

jc110 jaw crusher
pf1315 impact crusher
